Product Introduction

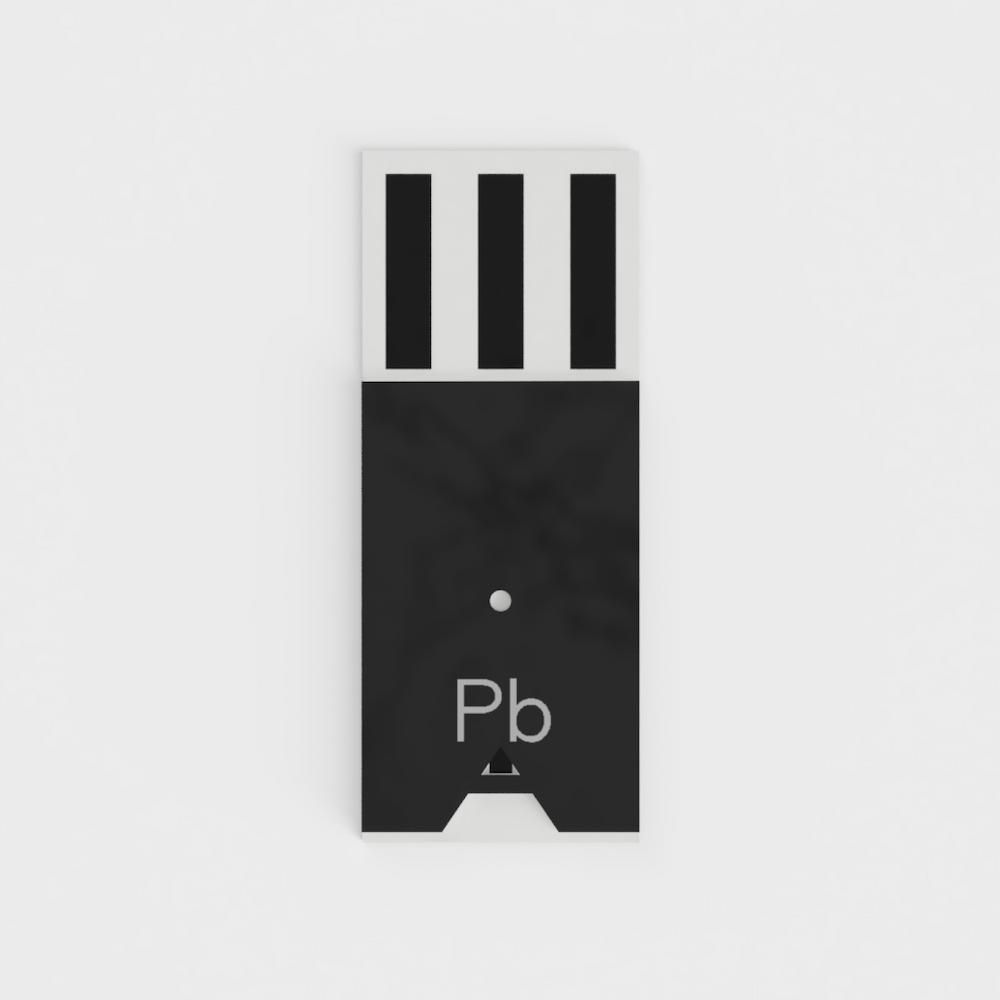

Lead ion electrochemical sensor test strip
The M series test strips introduce key technologies of biomedical blood glucose test strips, integrating electrochemical three-electrode system, microfluidics and drug coating technology on each sensor. Using a consistent production process, the quality of each tube sensor test strip is strictly controlled, and laboratory ppb-level detection can be achieved within a few minutes. With the portable electrochemical metal ion detection system MAS G1, users do not need complicated pre-treatment and calibration procedures, and do not need to worry about sample cross-contamination or interference caused by human operation, and can obtain the most real-time data in a highly efficient way.
SPECIFICATION
- model
- Pb-M020200
Detection species Lead ions - length
- 30 mm
- width
- 12 mm
- Microchannel volume
- 10 uL
- Calibration line concentration range
- 0.20-2.00 mg/L
- Minimum detection limit
- 0.15 mg/L
- Analysis time
- 240 seconds
Technical Information
The left picture shows the electrochemical voltammogram of different concentrations of lead ions (0.20-2.00 mg/L) in industrial wastewater detected by using the M series lead ion sensor (Pb-M020200) with the electrochemical metal ion detection system (MAS G1).
There is a very obvious lead ion current signal near -650 mV. The signal increases with the increase of lead ion concentration. After regression analysis of the current signal intensity and concentration, R2 > 0.99, indicating that this sensor can accurately quantify in real samples.
The quantitative range of Pb-M020200 (0.20-2.00 mg/L) is set for mass production to comply with the current Taiwan industrial effluent control standards. If you have quantitative requirements below 0.20 mg/L or above 2.00 mg/L, please call or write to our company for further discussion.
FEATURES
- No need to add pre-treatment reagents, just dip the test piece in the water sample
- No need to build a calibration line
- Equipped with microfluidic reaction tank, which is pre-coated with reaction reagents (non-controlled toxic substances)
- Only one drop of sample required
- Electrochemical three-electrode system detection (non-optical method)
- The material of the test piece is recyclable and will not cause any environmental burden
ACCUSENSING's metal ion sensor improves the existing on-site water quality rapid screening tools/instruments on the market that have no numerical values when detecting heavy metals, require pre-treatment with chemicals, are cumbersome and time-consuming to operate, and are inconvenient to carry. After continuous research and development, improvement, and real factory water sample testing, the product has been adopted by well-known domestic and foreign customers such as the Environmental Protection Administration of the Executive Yuan, Nan Ya Technology, a semiconductor manufacturer under the Formosa Plastics Group, Yongqiang Co., Ltd., a well-known electroplating company in the north, and MAPUA University in the Philippines.
